3D Membrane Press Machine
HALLMARK Has Manufacturing Wood Industry and 20+ years of experience under its belt, offering the widest selection of hydraulic components and solutions!
Request a Quick Quote
banner-mobile

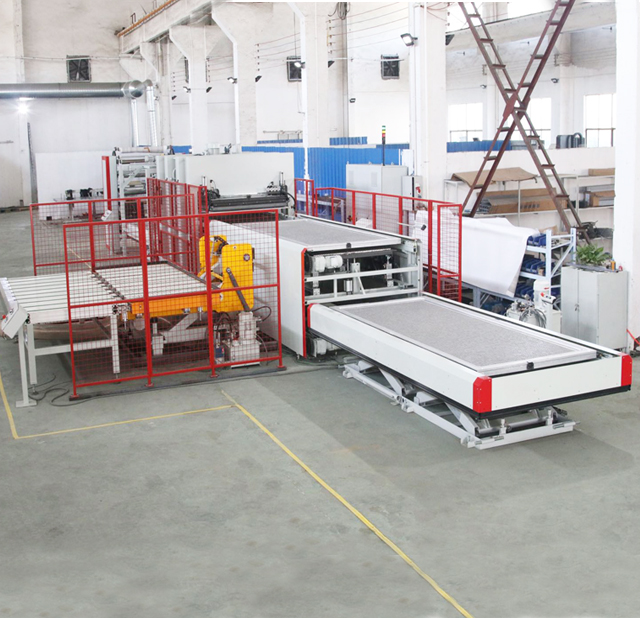

3D Laminating Membrane Press Machine

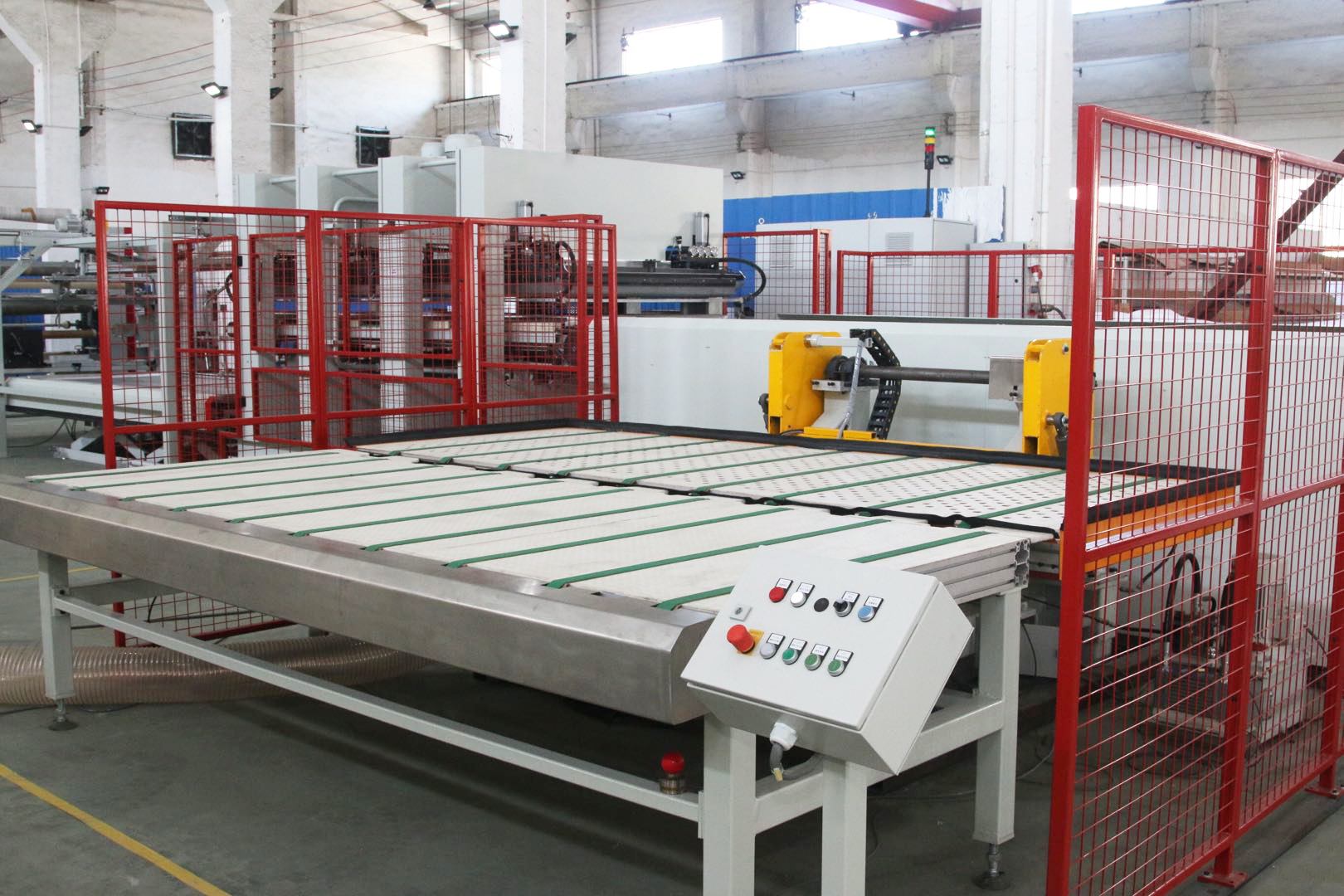

3D Membrane Press Machine

Parameter of 3D Membrane Press Machine

Model Machine Dimension Press Weight Heating Plate Dimension Working Dimension Installed Power Supply Vacuum Pressure Chamber pressure max. Upper aluminium heating plate Foil cutting
HM B3602 12,800mmx2,200mmx2300 mm 15T 3,600 mm x1,500 mm 3,380 mm x1,320 mm Approx.50 kW ≥-0.095 Mpa ≤0.6 Mpa Oil-electric Manual or Pneumatic
HM B3603 20,000 mmx6,400mmx3500 mm 18T 3,600 mm x1,500 mm 3,380 mm x1,320 mm Approx.80 kW ≥-0.095 Mpa ≤0.6 Mpa Oil-electric Manual or Pneumatic

3D Membrane Press Machine and Operating Data Logging

HallMark Uses state-of-the-art software programs, such as Siemens、ABB and Schneider.

The comfort touch panels of 3D Membrane Press Machine are displaying all important data of the plant at a glance and provide quick access to all process parameters. Moreover HallMark has got a new remote maintenance concept with simplified software, which improves maintenance and troubleshooting.

3D Membrane Press Machine

Why Choose Hallmark

3D Membrane Press Machine

 Hydraulic System Adopts Imported Solution.



 Reliability and Stability.



 Key components of hightemperature insulation material made of.

3

Features of 3D Membrane Press Machine

Control System
The control method adopts the industry's top brand Siemens system from Germany, the touch screen adopts the German Siemens high-definition touch screen, and the software adopts the control method of German high-end pressing technology to ensure the smooth and safe operation of the equipment.



Vacuum System
The entire series uses the German Becker imported vacuum pump U5.100, 2.2kw, which can ensure the fastest release of vacuum and can reach the extreme value



Temperature Control and Heating
The heating method is German electric oil heating plate, the electric heating wire is fully imported, the three-layer electric heating wire arrangement scheme, the first layer of oil circuit circulation balance, the only one in China to use this scheme, the heating plate has a supplementary heating function around it, which can ensure the temperature balance of the heating plate; compared with the German imported heating plate, it is more flexible and cannot be repaired.



Easy to Operate
The reading and setting of pressure, temperature, and time are completely realized on the Siemens touch screen. The individual hydraulic pressure, temperature, and air pressure are better measured and controlled through JUMO pressure sensors, JUMO thermal resistors, and Optris infrared thermometers to ensure the quality of each pot of product.



Benefits of 3D Membrane Press Machine

1. Enhanced Aesthetic Appeal
The most obvious benefit is the enhanced visual appeal. With the ability to create 3D textures and intricate designs, the vacuum membrane press machine allows for more creative freedom. This leads to better product differentiation and an eye-catching finish that can elevate the quality of any product.

2. Improved Durability and Resistance
As mentioned earlier, the bonding technology used ensures that the laminate is resistant to scratches, moisture, and wear. This makes the 3D membrane press machine ideal for applications in high-use environments, where durability is paramount.

3. High Productivity and Flexibility
Whether a business needs a large volume of product runs or customized small batches, the 3D laminating membrane press machine can adapt to different production needs. The efficiency of the machine allows for rapid turnaround times and the ability to create customized products with ease.

Know Detailed Information

Please Download Catalogue Here
3D membrane press

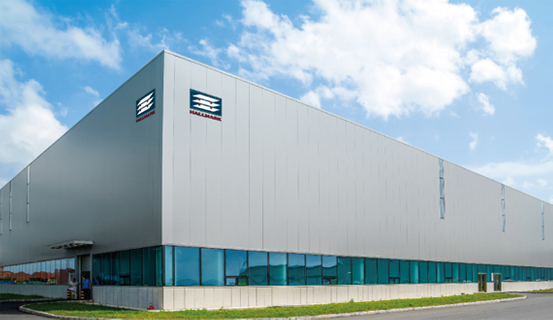

Welcome To Visit Our Factory

  • HALLMARK is a Wood Industry manufacturer specializing in research and development, production, sales and service, with its own factory and 19 years extensive experience in manufacturing large production lines. Products are sold to Russia, Turkey, Egypt, Algeria, South Africa, Iran, India, Malaysia, Vietnam, the United States and other more than countries around the world.

    Our Products include 3D Membrane Press Machine, Decorative panel production line (HPL Production Line、Short Cycle Hot Press Machine、SMC Door Press Machine ), New material machine (Copper clad Laminate Sheet Press Machine, Insulation Pressboard Hot Press Machine ),other auxiliary (Cold Press Machine , Melamine Paper Impregnation Line,Glue Making Machine) and so on.
    ​​​​​​
    • 3D Membrane Press Machine

As a leader in wood-based panel production line and Decorative panel production line、New Material Machine.HallMark has successfully provided customized one-stop services for small and large brands for more than 16 years with our rich expertise and know-how.



Our well-established factory in Jiangsu Province, China and sales offices are located all over the world. We are passionate about our business and continue to push the limits of technology to provide quality, innovative and environmentally friendly product solutions to our many customers.

Our Projects of 3D Membrane Press Machine
In today's fast-paced digital world, organizations strive to connect with their customers on a deeper level. Our HallMark do exactly the same thing, researching real customer cases and allowing potential customers to see our company's product or service.

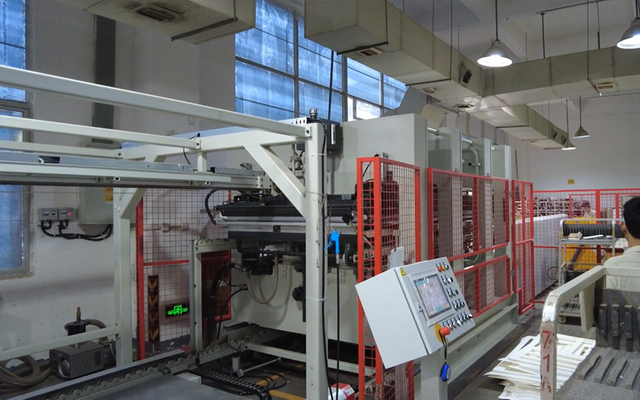

  • 3D Laminate Membrane Press Machine
    Melamine Paper Impregnation Line in America

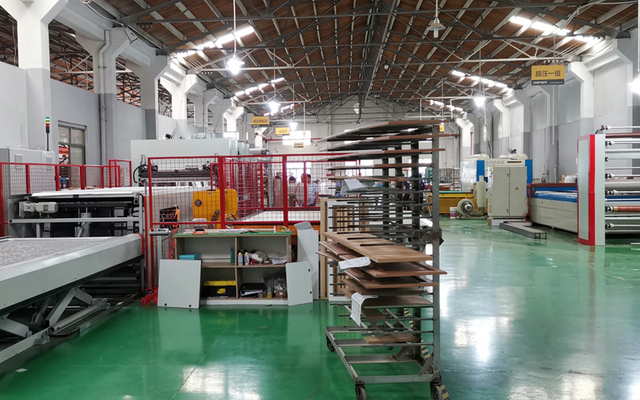

  • 3D Membrane Press Line
    Melamine Impregnation Line in Vietnam
  • 3D Membrane Press Machine
    Melamine Paper Impregnation Line in Turkey

FAQ of 3D Membrane Press Machine

  • Q What are the advantages of using a 3D Membrane Press Machine?

    High Quality Finish: The machine provides superior surface quality with seamless designs.
    Versatility: It can create various surface finishes, including matte, glossy, and textured.
    Cost Efficiency: It reduces labor and material costs compared to traditional methods.
    Durability: The film provides protection against scratches and wear, extending the life of the finished product.

  • Q How does the 3D Membrane Press Machine work?

    The process involves placing a thermoplastic film (membrane) on a mold or flat surface and then heating it. The film is pressed onto the substrate with a uniform temperature and pressure, forming a smooth, seamless surface. Once cooled, the film retains its shape, creating a 3D textured or glossy finish.

  • Q What industries benefit from using the 3D Membrane Press Machine?

    Industries such as furniture manufacturing, cabinetry, interior design, and decorative surface production benefit the most. It's especially useful for producing high-quality, durable finishes on kitchen cabinets, doors, and office furniture.

  • Q What materials can be used with the 3D Membrane Press Machine?

    Wood-based panels (MDF, particleboard, plywood)
    PVC, PET, and PP films
    Various thermoplastic films for different surface finishes (high gloss, matte, textured)

  • Q What is a 3D Membrane Press Machine

         3D Membrane Press Machine is an advanced industrial equipment used for shaping and decorating surfaces by pressing a thermoplastic film onto a substrate (usually wood, MDF, or particleboard) under heat and pressure. It creates a seamless 3D effect, making it ideal for furniture, cabinetry, and decorative panels.
