Glass Fiber Cloth Impregnation Production Line

Glass Fiber Cloth Impregnation Production Line

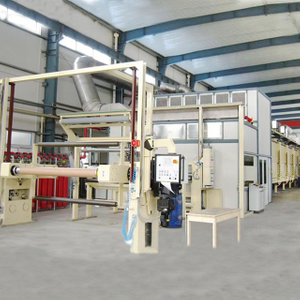

A Glass Fiber Cloth Impregnation Production Line is a manufacturing process that involves impregnating glass fiber cloth with resin to create a composite material with high strength and durability. The process involves several components, such as a resin tank, impregnation chamber, oven, puller, and cutter, that work together to impregnate the glass fiber cloth with resin, dry it, pull it through the machine, and cut it into the desired length. The Glass Fiber Cloth Impregnation Production Line is used in various industries such as aerospace, automotive, construction, and marine for applications requiring high strength, stiffness, and chemical resistance. Regular maintenance is necessary to keep the production line in excellent condition and ensure the quality of the end product.

What machines are required to install Glass Fiber Cloth Impregnation Production Line?

Glue Making Machine → Uncoiler → Dipping Machine → Fabric Picker → Cloth Cutting Machine → Cloth Storage Machine → Trimming Machine

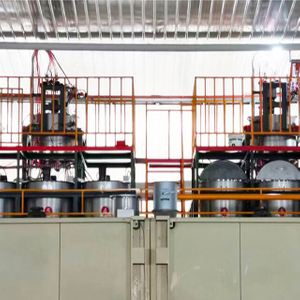

1.Glue Making Machine

Glue making machine is a device used in manufacturing to produce various types of adhesives or glues. These machines are designed to mix and heat raw materials such as resin, water, and chemicals to create a uniform mixture.

2.Uncoiler

An uncoiler is a machine used in metal processing that unwinds and feeds a coil of metal strip into a production line. The uncoiler typically consists of a motorized spindle or mandrel around which the metal coil is mounted. Uncoilers can be designed to handle a wide range of coil sizes and materials, and can be used in various metal processing applications, such as stamping, slitting, and roll forming.

3.Dipping Machine

Dipping machine is a device used in manufacturing to apply a coating or impregnate a material with a liquid solution or chemical. The machine typically consists of a tank filled with the liquid solution, and a conveyor system or dipping basket that moves the material through the tank. Some dipping machines can also be equipped with heating or drying systems to facilitate the curing process of the applied solution. The use of a dipping machine can help ensure consistent and uniform coating or impregnation of materials, and improve production efficiency.

4.Fabric Picker

Fabric picker is a device used in textile manufacturing to remove loose fibers or contaminants from fabrics before or after the weaving process. The picker consists of a rotating drum or cylinder covered with sharp teeth or wire brushes that comb through the fabric, dislodging any unwanted materials. The use of a fabric picker can help improve the quality and durability of the fabric by removing these unwanted materials, resulting in a smoother and more consistent finish.

5.Cloth Storage Machine

Cloth Storage Machine are used to organize and store large rolls of fabric in a way that makes them easily accessible for use in the production process. They typically consist of a series of shelves or racks that can hold fabric rolls of varying sizes and weights. The fabric rolls are loaded onto the shelves or racks using a lift or conveyor system, and can be moved along the storage system using a series of rollers or sliding mechanisms.The use of these machines can help improve the organization and efficiency of the fabric storage process, reducing the risk of damage to the fabric and facilitating faster.

6.Trimming Machine

Trimming machine is a device used in textile manufacturing to trim excess material or threads from fabric edges or seams. The machine can be manually operated or automated, and typically uses a rotary blade or scissor-like cutting mechanism to remove the unwanted material. Trimming machines can be used for a wide range of fabrics, from delicate lace to heavy-duty denim.

Paint requirements of  Glass Fiber Cloth Impregnation Production Line

Functional features: The internal sheet metal of the oven is made of stainless steel or galvanized sheet, the frame is rectangular square tube profile, assembled, welded, polished, derusted and sprayed with high temperature resistant silver powder paint, the weld seam of the sheet metal is polished smooth, and sprayed with high temperature resistant silver powder paint. The exterior of the oven and the nose and tail of the machine are all polished and derusted, and sprayed with light gray topcoat. All chain covers, front and rear covers, and doors are sprayed with blue matt enamel.

How Glass Fiber Cloth Impregnation Process Work

Glass fiber cloth impregnation is a process where a resin is applied to the surface of glass fiber cloth to create a composite material that is stronger, more durable, and more resistant to damage than the cloth alone. The process typically involves the following steps:

Preparing the Glass Fiber Cloth: The first step in the impregnation process is to prepare the glass fiber cloth. This typically involves cutting the cloth to the desired size and shape, and ensuring that it is free from any contaminants or debris that could interfere with the adhesion of the resin.

Mixing the Resin: The next step is to mix the resin that will be used to impregnate the cloth. Resins are typically made from a mixture of two or more components, such as an epoxy resin and a hardener. The components are mixed together in a specific ratio to ensure that the resin cures properly and creates a strong bond with the glass fiber cloth.

Applying the Resin: Once the resin is mixed, it is applied to the surface of the glass fiber cloth. This can be done by brushing the resin onto the cloth, or by immersing the cloth in a container of the resin. The goal is to ensure that the resin fully saturates the cloth and penetrates all of the fibers.

Curing the Resin: After the resin is applied to the glass fiber cloth, it must be allowed to cure. Curing is a process that involves allowing the resin to harden and form a strong bond with the cloth. The curing process can take anywhere from a few hours to several days, depending on the type of resin used and the environmental conditions.

Finishing the Composite: Once the resin has cured, the composite material is ready for use. Depending on the specific application, the composite may be sanded, painted, or otherwise finished to create a smooth surface that is suitable for its intended use.

FAQ of Glass Fiber Cloth Impregnation Production Line

What is a Glass Fiber Cloth Impregnation Production Line?

A Glass Fiber Cloth Impregnation Production Line is a manufacturing unit that coats glass fiber cloth with a resin to make it more durable and resistant to wear and tear.

What are the benefits of using a Glass Fiber Cloth Impregnation Production Line?

Using a Glass Fiber Cloth Impregnation Production Line can improve the quality and durability of the glass fiber cloth. The coating of resin makes it more resistant to water, chemicals, and abrasion, thus making it ideal for various industrial applications.

What are the main components of a Glass Fiber Cloth Impregnation Production Line?

A Glass Fiber Cloth Impregnation Production Line consists of several components, including unwinding machines, glass fiber cloth splicers, resin coating machines, drying ovens, cooling rollers, and winding machines.

What is the working principle of a Glass Fiber Cloth Impregnation Production Line?

The Glass Fiber Cloth Impregnation Production Line works on the principle of impregnation, where the glass fiber cloth is passed through a resin coating machine that coats it with a layer of resin. Then, the coated cloth is passed through a drying oven, where the resin is cured and hardened.

What are the different types of resins used in a Glass Fiber Cloth Impregnation Production Line?

The most commonly used resins in a Glass Fiber Cloth Impregnation Production Line are polyester, epoxy, and phenolic resins.
