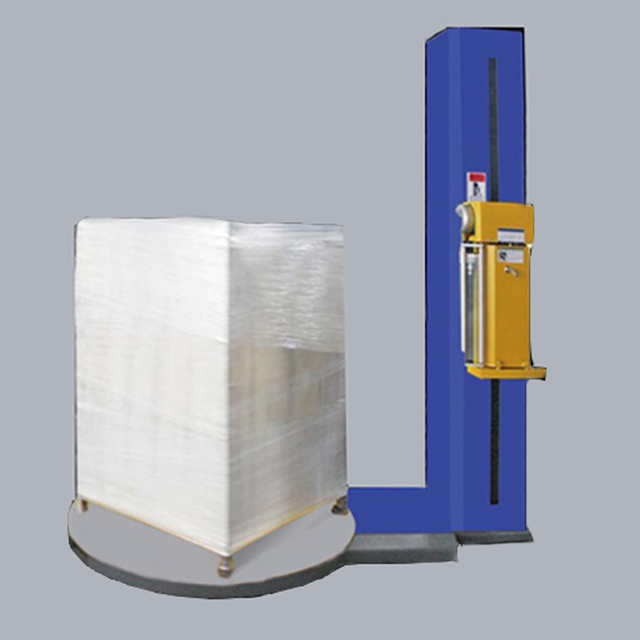

The Hallmark Tray Winding Machine is an industry-leading automatic pallet wrapper (also known as a tray winding machine or stretch film wrapping machine), designed specifically for modern logistics, warehousing, and manufacturing operations. It utilizes advanced pre-stretch technology to efficiently and reliably wrap palletized goods with multiple layers of film, ensuring protection against dust, moisture, and shifting during transportation.
Automatic Pre-Stretch System: Film stretch ratio up to 300%, significantly reducing stretch film consumption (saving over 50% compared to manual wrapping) and lowering packaging costs.
High Load-Bearing Turntable: Maximum load capacity of 2000-3000kg, with turntable diameter of 1500-2000mm, suitable for standard pallets (e.g., 1200x1200mm).
Intelligent Controls: PLC touchscreen operation, adjustable turntable speed (0-15rpm), independent settings for wrapping layers, top/bottom wraps, and soft start/stop to prevent load shifting.
Safety and Reliability: Equipped with overload protection, photoelectric height detection, emergency stop button, and noise level ≤75dB, compliant with industrial safety standards.
Optional Configurations: Ramp for loading, automatic film cutting, top platen, or inline integration to meet various production line needs.
Boost Packaging Productivity: Capable of handling 20-40 pallets per hour, far surpassing manual methods and reducing labor dependency.
Cost Savings: Pre-stretch technology minimizes film waste, delivering substantial long-term savings on consumables.
Superior Load Protection: Uniform and tight wrapping ensures stability, reducing damage during transit.
Wide Industry Applications: Ideal for food & beverage, chemicals, electronics, logistics, and building materials—especially for bulk cargo container shipping.
Brand Assurance: Hallmark equipment uses imported electrical components for superior stability and durability, backed by nationwide after-sales service and customization options.
1. What is a Tray Winding Machine?
A Tray Winding Machine is an automated or semi-automated device that wraps stretch film around palletized loads (often referred to as trays or pallets) to stabilize, protect from dust/moisture, and prevent shifting during transport.
2. What is the difference between a Tray Winding Machine and a Pallet Wrapping Machine?
There is no significant difference—they are interchangeable terms. "Tray Winding Machine" emphasizes wrapping tray-style pallets, while "Pallet Wrapping Machine" is more common globally.
3. How does the pre-stretch system work and why is it important?
The pre-stretch carriage stretches the film (up to 300%) before applying it to the pallet using powered rollers running at different speeds.This saves 30-50% on film consumption, provides better load containment, and reduces costs compared to manual or non-pre-stretch wrapping.
4. What types of stretch film can be used?
Most machines use standard LLDPE (Linear Low-Density Polyethylene) stretch film, width 500mm, thickness 17-30 microns. Machine-grade film is recommended for pre-stretch systems; hand film may not perform well.
