Melamine Paper Impregnation Line
HALLMARK Has Manufacturing Wood Industry and 20+ years of experience under its belt, offering the widest selection of hydraulic components and solutions!
Request a Quick Quote
banner-mobile
melamine impregnation line

Melamine Paper Impregnation Line

Melamine Paper Impregnation Line Video

Hallmark Melamine Paper Imrengnation Line

Here are our vanous types of Paper impregnotion line and related equipment catalog
  • One-Stage Impregnation Line

    One-Stage Impregnation Line

  • Two-Stage Impregnation Line

    Two-Stage Impregnation Line

  • Impregnation Line Single Units

    Impregnation Line Single Units

  • Glue Making Equipment

    Glue Making Equipment

  • Intelligent Glue Mixing System

    Intelligent Glue Mixing System

  • Chemical Raw Materials And Additives

    Chemical Raw Materials And Additives

  • RTO Air Pollution Control System

    RTO Air Pollution Control System

  • Four Color Printing Machine

    Four Color Printing Machine

  • Stacking System for melamine impregnation line

    Stacking System


Process Flow of Paper Impregnation Line

1.One Stage Horizontal Paper Impregnation Line

This Melamine Paper impregnation line typically involves a horizontal configuration where the paper is fed through a series of rollers and baths containing melamine resin. The process involves saturating the paper with the resin to ensure even coating and impregnation throughout the paper substrate. Once impregnated, the paper is cured to harden the resin, resulting in a durable and decorative surface layer.

melamine paper line
2. Two Stage Horizontal Melamine Paper Impregnation and Coating Line

 The Two Stage Horizontal Impregnation Line and Coating Line for melamine paper impregnation line is a specialized production setup used in the manufacturing of melamine-impregnated paper, typically employed in the fabrication of laminate surfaces for furniture, countertops, and flooring.

melamine paper impregnation line

The horizontal impregnating and coating line is used for making overlays and melamine decorative papers for LPL/HPL and fortified floor. It also can make Concrete Shuttering Board Overlay (PSF).

More details of Melamine Paper Impregnation Line

1.Unwinder

The unwinder is a crucial component of the melamine paper impregnation line. Its primary function is to take the paper through the impregnation and coating process and then wind it into rolls for subsequent manufacturing steps. The design and performance of the unwinder directly impact the efficiency and quality of the entire production line. When selecting and operating the unwinder, factors such as paper width, thickness, and the process requirements of the production line must be considered to ensure a smooth production flow and high-quality end products.

Unwinder
Impregnation Device
2.Impregnation Device

The impregnation device is a vital component in a melamine paper impregnation line. Its primary role is to saturate the paper with melamine resin, ensuring proper coating and impregnation.The impregnation device must be designed and operated with precision to achieve uniform impregnation across the paper surface. Factors such as resin viscosity, temperature control, and application pressure are carefully monitored to guarantee the quality and consistency of the impregnated paper, contributing to the production of high-quality melamine laminates or related products.

3.Impregnation Station
The most critical unit in the Phenolic Film Impregnation Line.
Paper enters the impregnation station through the inlet roller,
and then the air in the paper is discharged through one-sided gluing
by the pre-wetting roller. After full penetration, paper goes into
the vat. High-precision metering roller and smoothing roller
accurately control the uniformity of the amount of glue.
IMPREGNATING STATION
Dryer


4.Dryer

The component or process within a manufacturing line for Melamine Impregnation Line. In such a line, the dryer plays a crucial role. The dryer is responsible for removing moisture from the impregnated melamine paper, ensuring proper curing and setting of the resin.



5.Coater
The coater for a melamine paper impregnation line is a critical component used in the production process of melamine-impregnated paper. This coater applies a layer of melamine resin onto the paper substrate, ensuring uniform coverage and adhesion. The coated paper is then dried and cured to create a durable surface suitable for various applications such as laminates for furniture, flooring, and decorative panels.
Coater
Web Aligner


6.Web Aligner

The Web Aligner is a crucial component in a melamine paper impregnation Machine, ensuring precise alignment and tension control of the paper web as it moves through various stages of the Melamine Paper impregnation Line.



7.Aluminum Oxide Glue Coating Machine
The mixture of glue and aluminum oxide is evenly sprayedon the surface of the melamine paper line to provide wear resistance.Number of wear-resistant revolutions can reachthe national standard of 15,000 revolutions.
Aluminum Oxide Glue Coating Machine

Parameter of Melamine Paper Impregnation Line

No Item Parameter
1 Raw Paper Decorative,Kraft,Balance,Overlay Paper
2 Raw Width 4-8 Feet
3 Resin Typre UF/MF/PF
4 Working Speed 10-100m/min
5 Heating Medium Natural Gas/Thermal Oil

Melamine Paper Impregnation Line and Operating Data Logging

HallMark Uses state-of-the-art software programs, such as Siemens、ABB and Schneider.

The comfort touch panels of melamine paper impregnation line are displaying all important data of the plant at a glance and provide quick access to all process parameters. The process masks are continuously focused on the process and in case of a problem or interruption a high volume of information can be provided, in order to localize the reason for the disturbance. Moreover Rigo has got a new remote maintenance concept with simplified software, which improves maintenance and troubleshooting.

paper impregnation line

Why Choose Hallmark Melamine Paper Impregnation Line

 20+ Years experience in manufacturing melamine paper impregnation line.



 15% Energy Saving.



 Provide a complete solution for the installation and design of the entire dip line.



 Raw material procurement, glue formulation and production skills training.



 Equipment maintenance, technical support and other after-sales services ensure long-term stable operation of the production line.

Unwinder

Features of Melamine Paper Impregnation Line

Accuracy Resin Pick-Up

This is particularly relevant in industries where materials are impregnated or coated with resin, such as in the production of composite materials, laminates, or melamine-coated papers.



Multi-point Web Tension Control

refers to a system or method used in web processing industries, such as printing, converting, or packaging, where a continuous material (web) is being transported through various points in a machine. Maintaining consistent tension across multiple points is crucial for achieving high-quality results and preventing defects in the final product.



Cut-to-Mark System

In a melamine paper impregnation line, where sheets of paper are impregnated with melamine resin for use in laminates or other applications, a "Cut-to-Mark" system could refer to a technology or process where the cutting of the material is synchronized with specific marks or patterns on the paper. This synchronization ensures accurate and precise cutting, aligning with the desired dimensions or designs.



High Efficiency and Energy Saving Dryer

Implementing heat recovery systems can capture and reuse excess heat generated during the drying process. This can significantly improve overall energy efficiency by recycling heat within the system.



Optimized Airflow and Ventilation

Design the drying system with optimized airflow to ensure uniform drying across the material. Proper ventilation systems can prevent heat loss and enhance the efficiency of the drying process.

melamine board
Melamine MDF Board
melamine Paper
melamine paper

Application of Melamine Paper imrengnation Line

The Melamine paper impregnation Line is a manufacturing process used to coat and impregnate paper or other substrate materials with various resins, chemicals, or coatings. The impregnation process can provide various benefits, including increased durability, moisture resistance, and enhanced printability, among others. Here are some common applications of paper impregnation line

Decorative Laminates
Paper impregnation lines are widely used to produce decorative laminates, which are commonly used in the furniture and construction industries. The impregnated paper can be bonded to a substrate, such as particleboard or medium-density fiberboard (MDF), to create a durable and attractive surface.

High Pressure Laminates
High-pressure laminates are used in applications that require high durability, such as countertops, flooring, and wall panels. The impregnation line is used to apply a resin to a paper substrate, which is then bonded to a core material and pressed under high pressure and temperature to create a strong and durable laminate.

Specialty Papers
Impregnated paper can also be used to produce specialty papers, such as electrical insulation paper, release liners, and abrasive papers. The impregnation process can add specific properties to the paper, such as heat resistance, release properties, or abrasion resistance, depending on the application.

Packaging Materials
Paper impregnation lines can also be used to produce various types of packaging materials, such as food wrapping papers, paper bags, and cardboard boxes. The impregnated paper can provide increased strength, moisture resistance, and other properties that make it suitable for packaging applications.

Labels and Tapes
Impregnated paper can be used to produce labels and tapes for various applications, such as packaging, labeling, and sealing. The impregnation process can add specific properties to the paper, such as adhesion, water resistance, and durability, depending on the application.
Edge Manding
COMPACT LAMINATE
HIGH PRESSURE LAMINATE

Anti Counterfeiting Code Inkjet Printer of Paper Impregnation Line

paper impregnation line

Anti-counterfeiting verification: Anti-counterfeiting code printers can print unique anti-counterfeiting codes on the surface of products. These anti-counterfeiting codes can effectively prevent products from being counterfeited or impersonated. By scanning these anti-counterfeiting codes, consumers and parties in the supply chain can easily verify the authenticity of the products.



Quality traceability: Each product has a unique anti-counterfeiting code, through which manufacturers can trace the production date, production line and raw material source of each batch of products. This is very important for product quality management and problem tracing, especially when quality problems occur, they can quickly locate and solve problems.

melamine paper impregnation line

Improve production efficiency: Modern anti-counterfeiting code printers have high-speed printing capabilities and can complete the anti-counterfeiting code printing of a large number of products without affecting the speed of the production line. This not only improves production efficiency, but also reduces the errors and work intensity of manual operations.





Enhance brand image: By printing anti-counterfeiting codes on products, companies demonstrate their attention to product quality and consumer rights, and enhance the brand's reputation and image. When consumers buy, they will trust products with anti-counterfeiting codes more, thereby increasing brand loyalty.



Know Detailed Information

Please Download Catalogue Here
melamine paper impregnation line

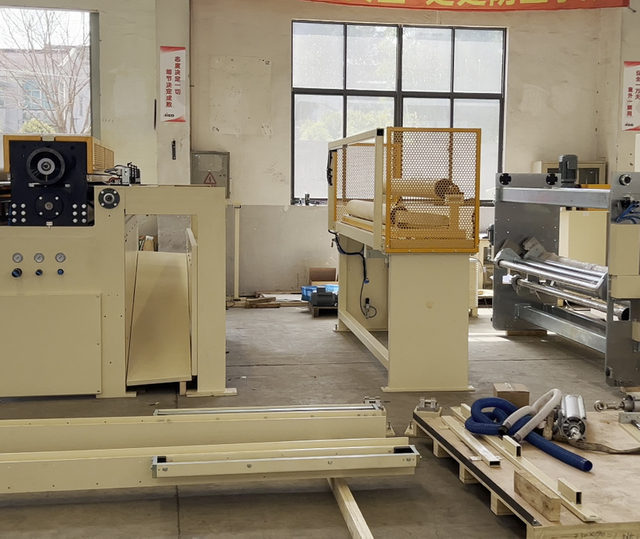

Welcome To Visit Our Factory

Melamine Paper Impregnation  Line

Melamine Coating Machine

Paper Impregnation Line

As a leader in wood-based panel production line and Decorative panel production line、New Material Machine.HallMark has successfully provided customized one-stop services for small and large brands for more than 16 years with our rich expertise and know-how.



Our well-established factory in Jiangsu Province, China and sales offices are located all over the world. We are passionate about our business and continue to push the limits of technology to provide quality, innovative and environmentally friendly product solutions to our many customers.

Our Projects of Melamine Paper Impregnation Line
In today's fast-paced digital world, organizations strive to connect with their customers on a deeper level. Our HallMark do exactly the same thing, researching real customer cases and allowing potential customers to see our company's product or service.

Till now we have successfully set up many melamine paper Impregnation Line factories in the middle east, Southeast Asia, Central Asia, etc.
  • paper impregnation line
    Paper Impregnation Line in America
  • paper impregnation line
    Melamine Impregnation Line in Vietnam
  • paper impregnation line
    Melamine Paper Impregnation Line in Turkey

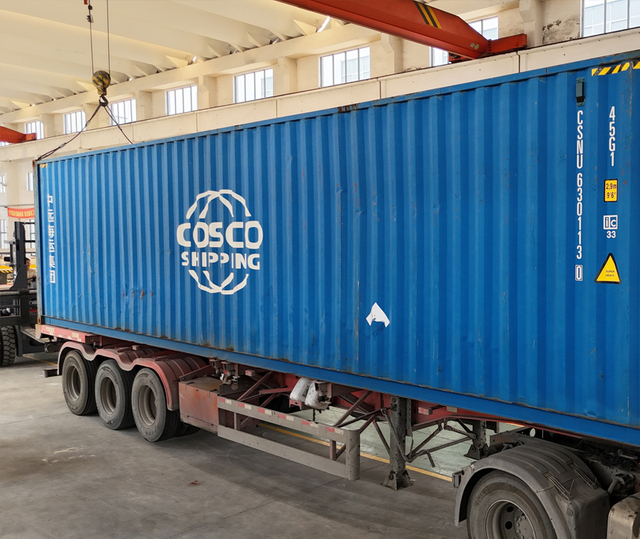

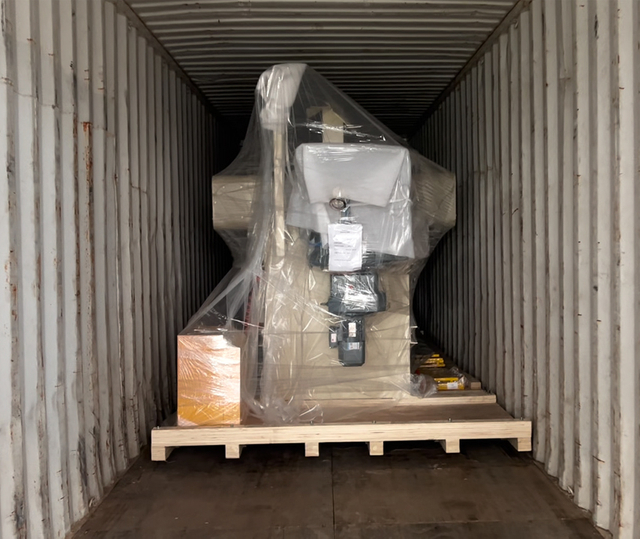

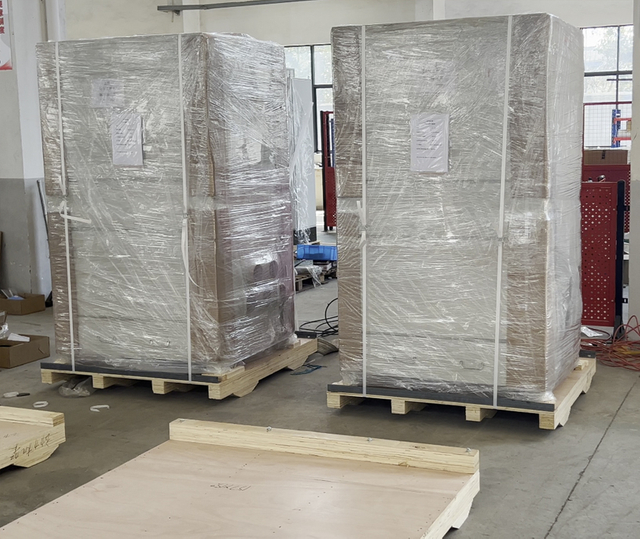

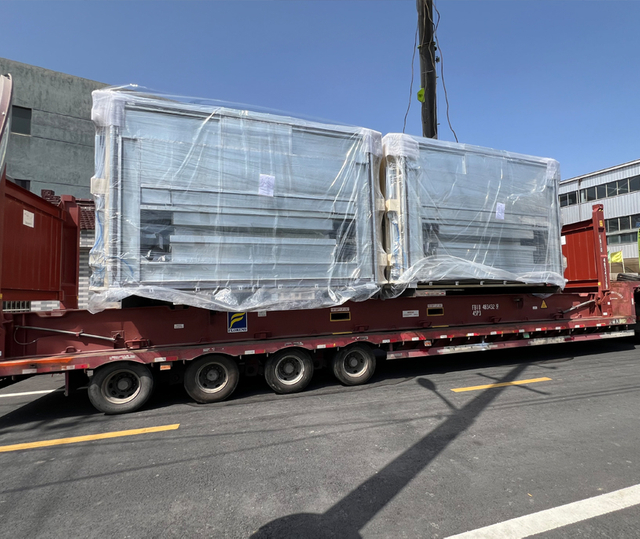

Delivery of Melamine Paper Impregnation Line
Our team ensured that all components of the Melamine impregnation line were securely transported to your facility. We have taken every measure to guarantee the safety and integrity of the equipment during transit, adhering to the highest standards of handling and packaging.

Till now we have successfully set up many melamine paper Impregnation Line factories in the middle east, Southeast Asia, Central Asia, Vietnam etc.

FAQ of Melamine Paper Impregnation Line
