| Exhaust Gas Characteristics | Detailed Operating Parameters | Treatment Pain Points & Challenges |
| Main Components | Formaldehyde, phenol, methanol, toluene, xylene, ammonia, resin aerosols, wood dust/bonded fiber dust, etc. | Extremely complex composition, containing sticky resin particles that easily clog equipment. |
| Operating Conditions | Air volume: 15,000–40,000 m³/h Concentration: 500–3,000 mg/m³ Temperature: 60–150° | Large air volumes and fluctuating medium-to-high concentrations require equipment with strong shock-load resistance. |
| Environmental Requirements | Strong, irritating odors requiring a stable removal rate of 98% or higher. | Must completely eliminate odors and toxic substances while balancing the operational energy consumption and economic efficiency of the enterprise. |

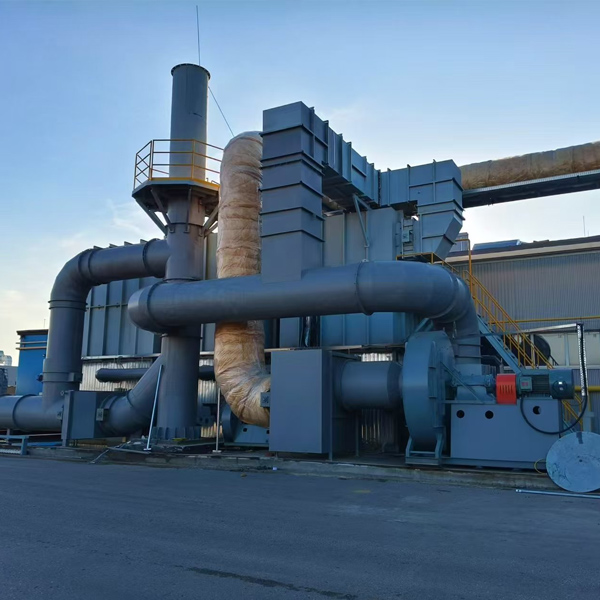

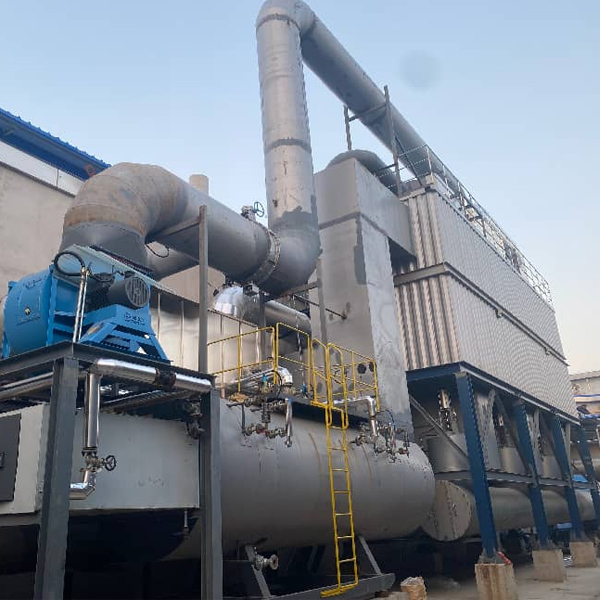

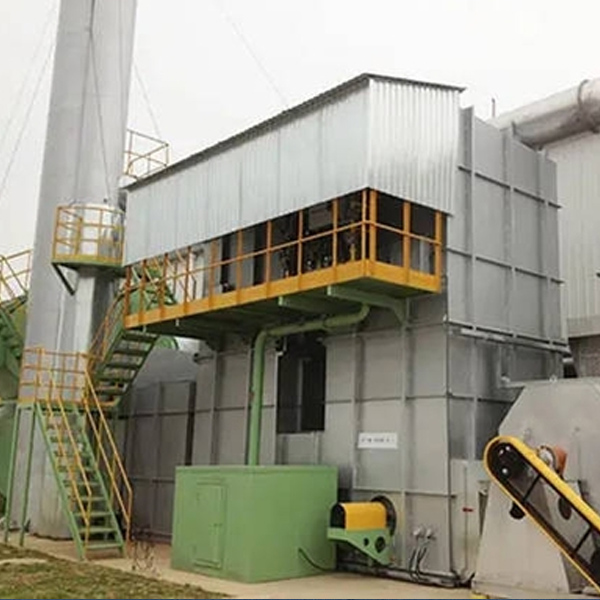

To address these pain points, the Regenerative Thermal Oxidizer (RTO) uses high-temperature incineration to completely convert organic exhaust gas into harmless carbon dioxide (CO₂) and water (H₂O), making it the preferred VOC solution for impregnation lines.
For phenolic exhaust gas treatment projects, source manufacturers usually recommend a three-chamber RTO to completely eliminate the problem of untreated exhaust gas bypassing the system. Its core working principle involves the following four steps:
Heat Storage Preheating (Intake): Industrial exhaust gas first enters a pre-heated ceramic heat storage chamber, where it is heated to 600–700°C, drastically reducing the fuel consumption needed for further heating.
High-Temperature Oxidation (Combustion): The pre-heated gas enters the combustion chamber, where it remains at 750–850°C for 1–2 seconds. During this phase, VOCs are thoroughly decomposed, and toxic substances like formaldehyde and phenol are 100% destroyed.
Heat Release (Exhaust): The purified, high-temperature gas passes through another heat storage chamber (currently in a cold state), transferring its heat to the ceramic media (thermal efficiency ≥ 95%) before being cooled and discharged.
Purge to Prevent Residue (Blowdown): The third chamber uses clean air to purge any untreated exhaust gas trapped in the valves and pipes back into the combustion chamber for re-oxidation, ensuring maximum purification efficiency.
Manufacturer's Core Technology: Waste Heat Recovery System (The Key to Profitability)
High-quality RTO manufacturers provide not only exhaust gas treatment but also energy management. The high-temperature flue gas (approx. 800°C) generated by the RTO can be repurposed via a heat exchanger after preheating the intake air:
Priority Return to the Production Line: Routing thermal energy back to the drying section of the impregnation line (120–180°C) can reduce natural gas consumption by over 50%.
Secondary Utilization: Waste heat can also be used for workshop heating or producing hot water/steam, allowing companies to recover their equipment investment costs within 1.8–2.5 years.
Ultra-High Treatment Efficiency: Achieves a VOC removal rate of 98% - 99.5%, with near-zero emissions of formaldehyde and phenol, stably meeting stringent local and national ultra-low emission standards.
Low Operating Costs: With a thermal efficiency of ≥ 95%, it can achieve self-sustaining combustion (requiring no natural gas) under medium and high concentration conditions. It eliminates the expensive consumable costs of replacing activated carbon, making overall operation and maintenance costs 60% lower than activated carbon systems.
Manufacturer Quality Guarantee: Industrial-grade ceramic heat storage media boast a lifespan of ≥ 5 years, and the overall equipment requires minimal maintenance, ensuring continuous operation of the production line.
Safe and Explosion-Proof Design: Designed for the rigorous demands of impregnation lines operating up to 8,000 hours per year, manufacturers equip these systems with flame arrestors, explosion relief panels, over-temperature/over-pressure interlocking systems, and emergency bypasses to guarantee absolute safety.
No two phenolic impregnation lines have identical working conditions. Partnering with an experienced custom RTO manufacturer is crucial. When selecting equipment, the following dimensions must be prioritized:
Air Volume Redundancy: The design air volume is typically 15,000–25,000 m³/h per line. Professional manufacturers will build in a 10%–20% margin to accommodate production capacity fluctuations.
Temperature and Cycle Control: The combustion chamber temperature is precisely controlled at 780–820°C (balancing VOC destruction efficiency with low nitrogen oxide emissions), and the heat storage chamber switching cycle is set to 60–90 seconds to achieve optimal thermal balance.
Crucial Pre-treatment: Due to the sticky resins in phenolic exhaust gas, it is mandatory to include a "Spray Scrubber + High-Efficiency Filtration" pre-treatment module. This prevents resin aerosols from clogging the RTO's ceramic honeycomb blocks at the source.
Water-Based Impregnation Lines + RTO Integration: Driven by new industry standards, water-based resins are becoming widely adopted. Although the initial exhaust gas concentration is lower, the highly efficient heat retention of the RTO still increases the self-sustaining combustion rate to over 80%, further reducing energy consumption for enterprises.
RTO + Deep Waste Heat Recovery Networks: Breaking past the limitations of single-use equipment, we are linking the RTO directly with the drying and hot pressing systems of the impregnation line into a plant-wide thermal network, pushing comprehensive energy utilization rates past 85%.
AI Intelligent RTO Systems: By introducing IoT and AI algorithms, the RTO control system can dynamically link directly with the production load of the impregnation line. This enables automatic variable-frequency adjustments of temperature and air volume, ushering environmental equipment into the era of "unattended" operation.
