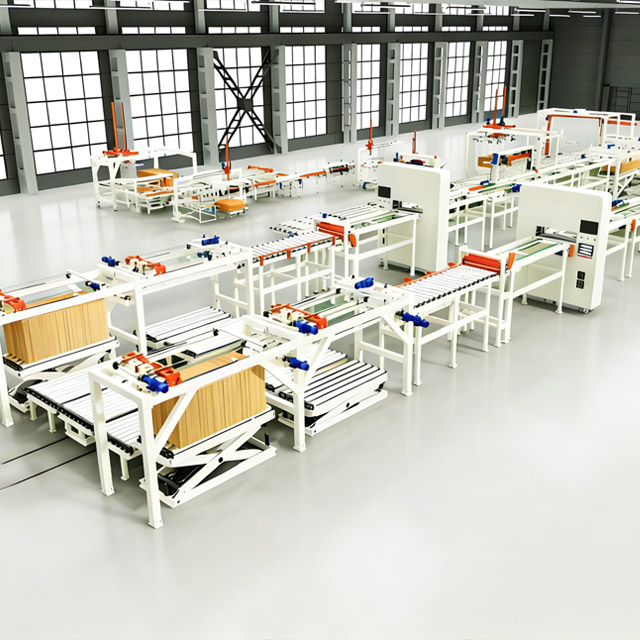

MDF/PB/OSB/MFC Sorting/Grading Line
Powered by high-precision industrial cameras, AI deep learning algorithms and intelligent image recognition technology, the system realizes full-automatic, real-time online detection of various surface and internal defects, including cracks, bubbles, scratches, color differences, impurities, pinholes, delamination and gluing defects.
Visual Inspection Solution supports seamless connection with existing production lines, achieving 24-hour uninterrupted intelligent screening instead of manual visual inspection.
The system features high detection accuracy, fast recognition speed and strong anti-interference ability, effectively reducing missing inspection and false detection rates.
Inspeciton items:( detection rate more than 99%):
2mm diameter plastic dots, oil, dust particles,hourglasses, large shavings and other foreign objects
1mm deep scratches, pits
2mm crack and missing angle
Minimum Defect Size: 0.8×0.8mm/ 0.4×0.4mm
Advantages of MDF/PB/OSB/MFC Sorting/Grading Line
1.Full-coverage, multi-material adaptation
Suitable for particleboard (PB/SPB), MDF/HDF, OSB/FOSB and other wood-based panels. Supports thickness 0.8-40 mm and standard sizes 4×8/9/10ft (1220×2440–3050 mm), with wide compatibility.
2.High-precision defect detection
Minimum detectable defect: 0.8 mm (800 μm). Repeatability accuracy ±0.1 mm (100 μm). False detection ≤0.3%, missed detection ≤0.2%, zero missed detection for existing defects.
3.AI self-adaptive ADetector model
Uses prompt-based deep learning with zero-shot transfer capability. Fast model adaptation for new defects and new panels, outperforming traditional supervised learning.
4.Top/bottom/side 3-sided full inspection
Equipped with 16K/8K/2K industrial line-scan cameras and high-brightness direct light sources to clearly capture defects including:
Stains, oil, water marks, glue spots
Scratches, cracks, holes, pinholes
Chipped edges, bubbles, delamination
Rough surfaces, foreign materials, size deviations
5.High-speed online inline inspection
Line speed 100–300 m/min. Stable, low-vibration conveying design. Capacity up to 1300 m³ per 16 hours.
6.Intelligent grading & automatic sorting
Auto-output premium, qualified, and rejected grades. Customizable grading thresholds to ensure zero defects in premium boards.
7.Stable & reliable industrial design
Rugged aluminum frame, anti-rust treatment. Operating temperature: -5°C to 42°C. Camera-light distance ≥50 mm (adjustable).
8.Intelligent software & data traceability
Real-time defect imaging, size measurement, statistics, pie-chart analysis.
Supports shift/day reports, data export, and optional ERP/MES docking.
9.Seamless production line integration
Customizable height and width. Compatible with belt/roller conveyors. Easy retrofitting to existing lines.
10.Complete after-sales & remote service
On-site data collection, modeling, training, commissioning. Remote update for new defect models; on-site support if needed.
